Deep Runner Customer Interest Analyzer with Age/Gender

Measures customer interest in the content you want to show them.

How actively will people engage with your exhibition?

This device uses cutting-edge AI technology to analyze customer interest in billboards, promotional displays, and product displays in real time, evaluate advertising effectiveness, and provide real-time marketing insights for personalized advertising.

🔹Key Features

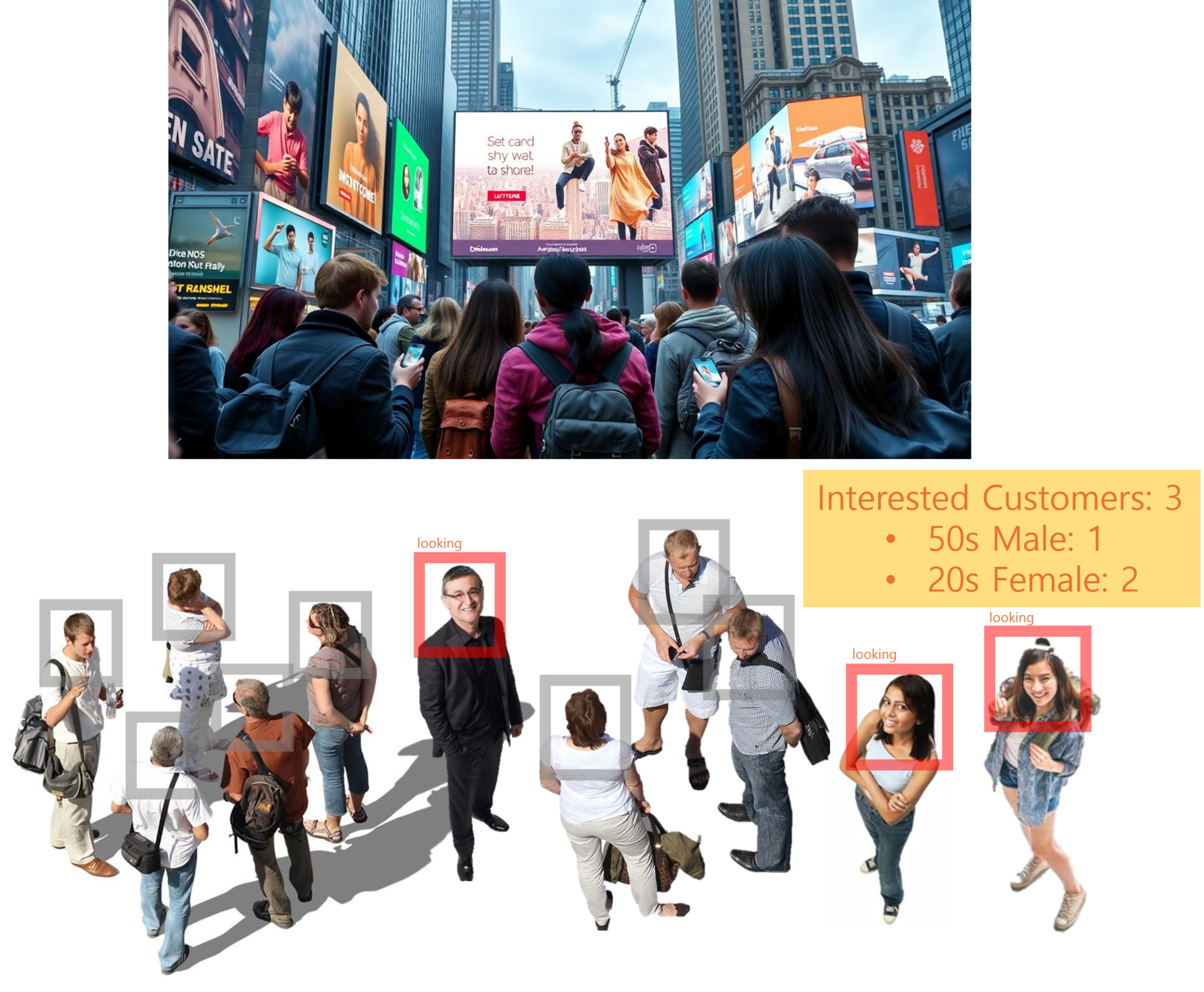

Real-time Interest Measurement


AI algorithms collect accurate data by distinguishing between customers who are actively watching your facilities in real time and those who are not.

AI Gender/Age Recognition


Advanced deep learning models accurately analyze customer gender and age to identify your target audience.

Attention Time Tracking


Measure the time each customer spends watching your facilities to analyze their level of interest.

Personalized Advertising Integration


Based on this data, you can integrate with nearby advertising systems to deliver personalized ads in real time.

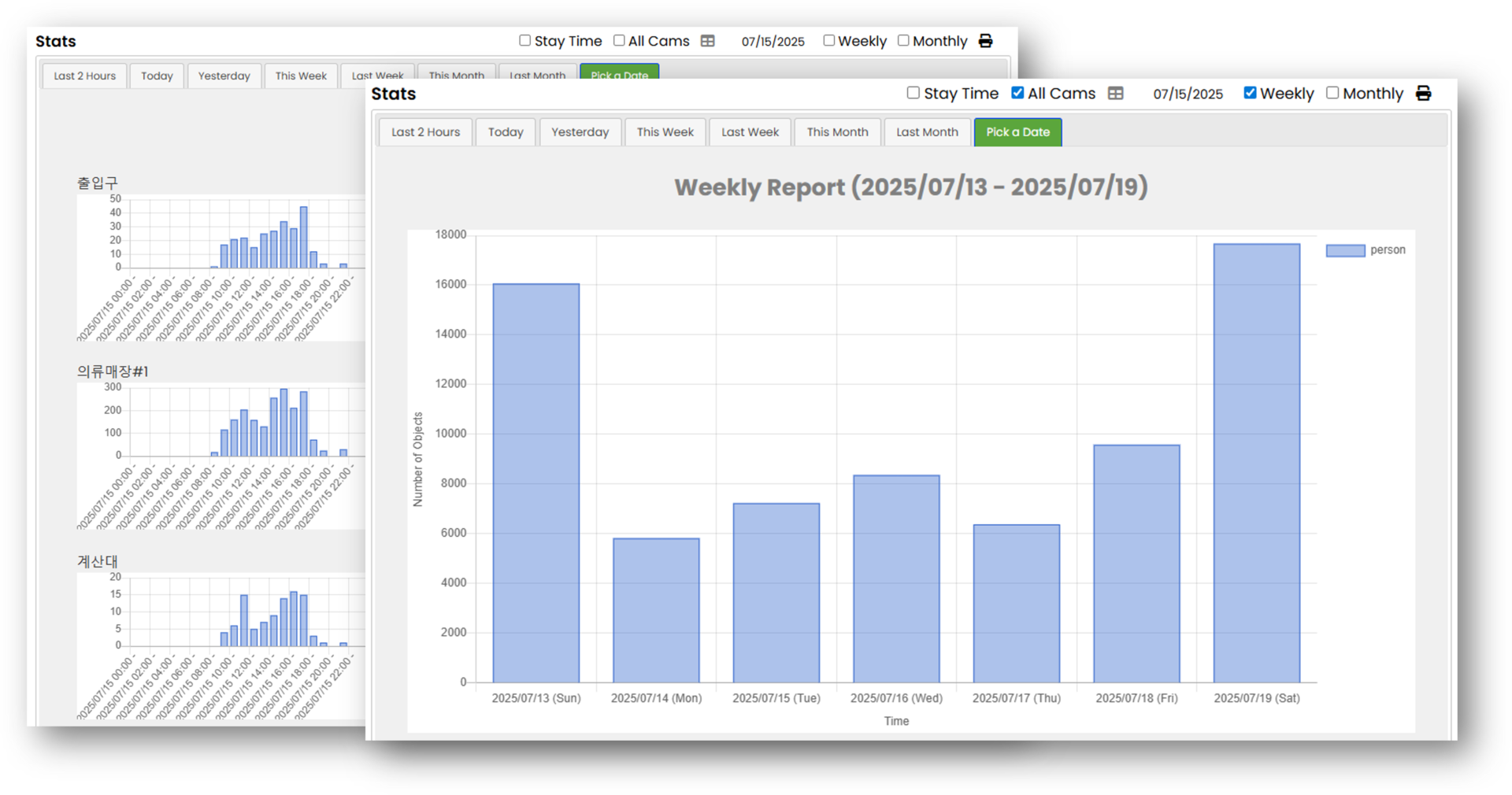

Detailed Reporting


Provide detailed analysis reports visualized in graphs by time zone, gender, and age, daily/weekly/monthly.

Concurrent Use with CCTV Cameras


You can use existing CCTV cameras in parallel to reduce costs.

🔹Product Lineup

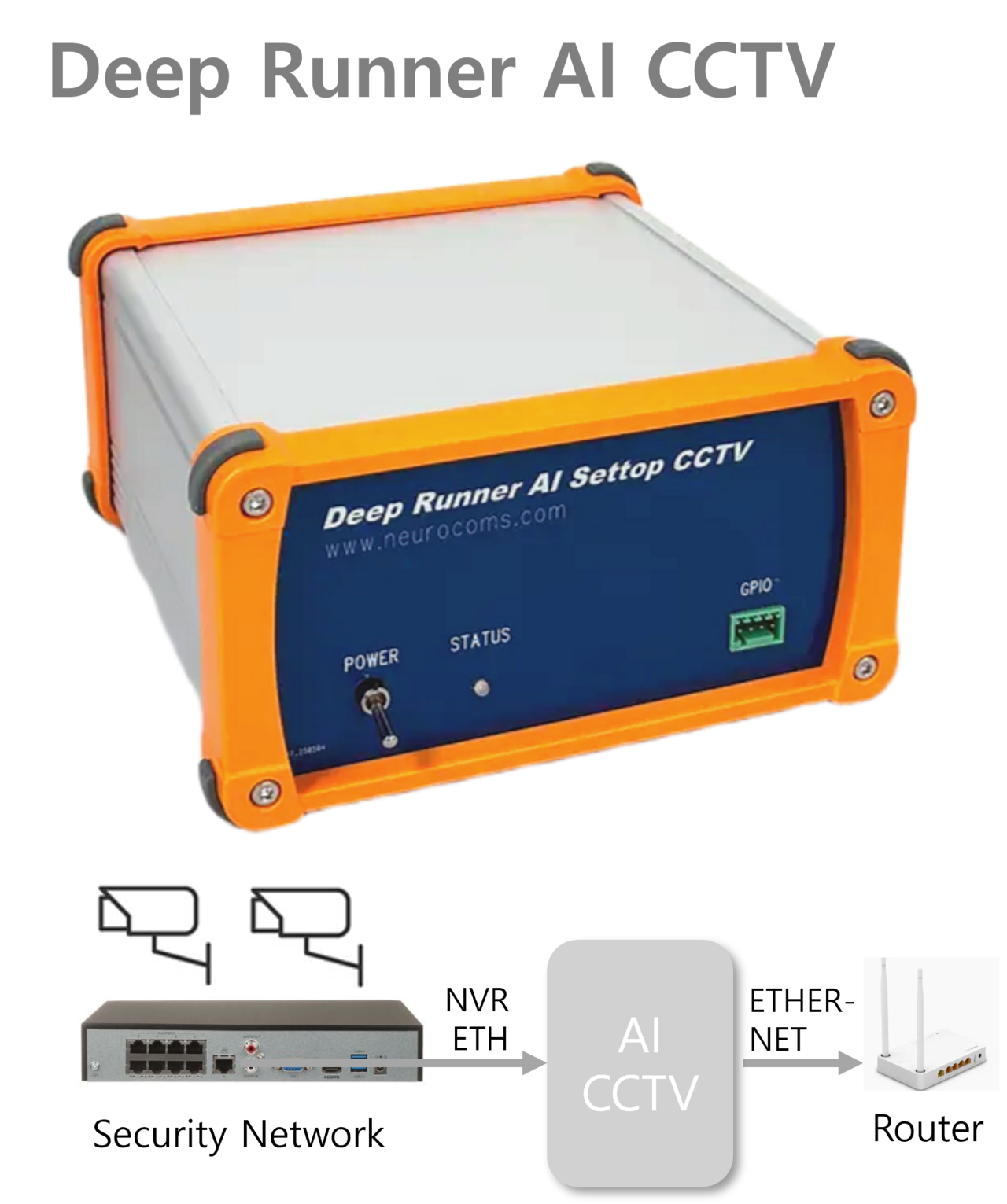

1. DeepRunner AI CCTV Ad. Meter


This high-performance model can connect up to 9 cameras.

It offers full compatibility with existing security systems and is ideal for large stores and complex facilities.


  • Connects up to 9 cameras
  • Compatible with existing security systems
  • Includes AI router
  • NVR ETH Ethernet port

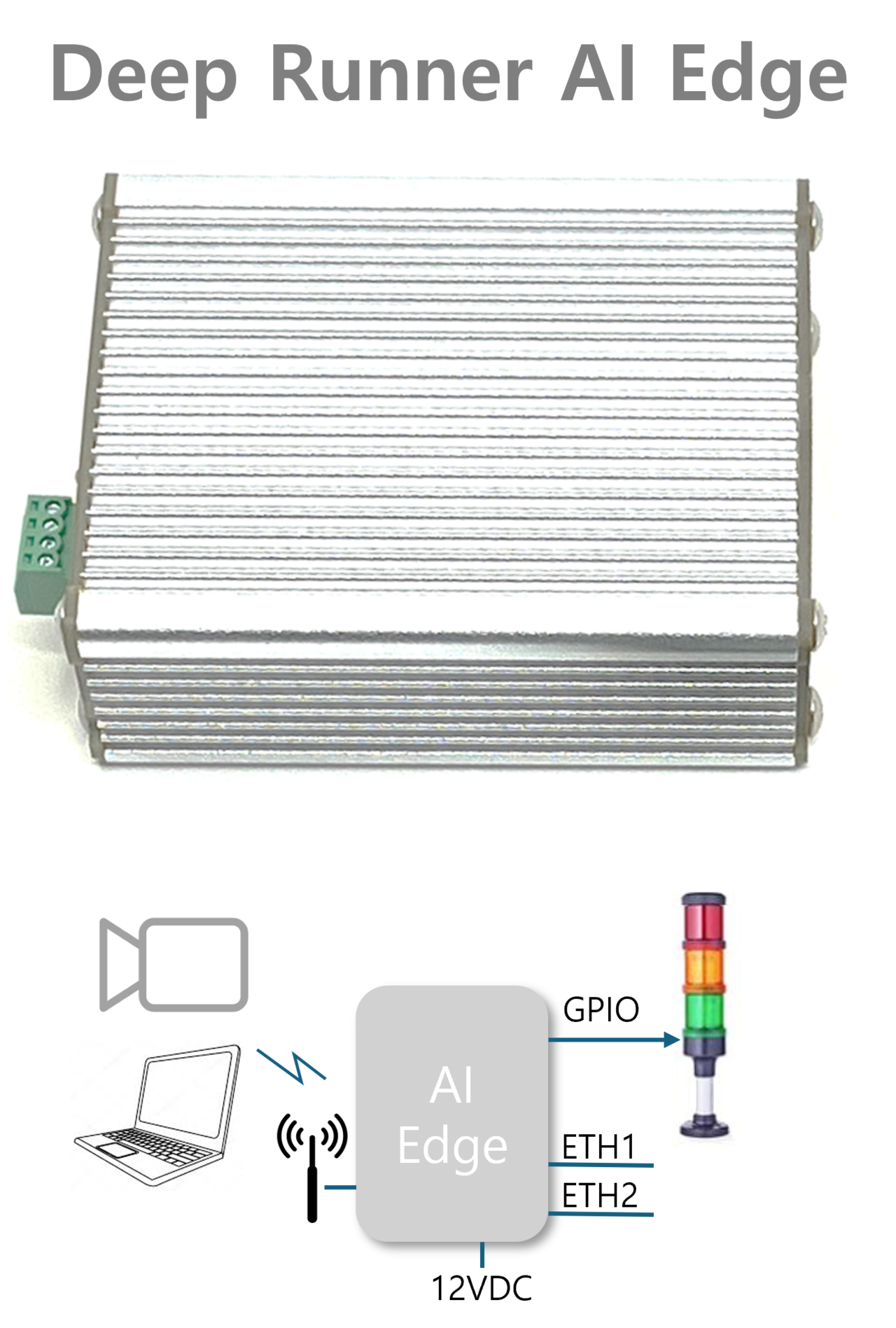

2. DeepRunner AI Edge Ad. Meter


This compact model is optimized for small stores or single-point analysis. Easy installation and use allow for quick implementation.


  • Single-camera connection
  • Compact design with built-in networking capabilities
  • Easy installation
  • Cost-effective
🔹How to Use
  1. A camera is installed to face customers from a facility of interest.

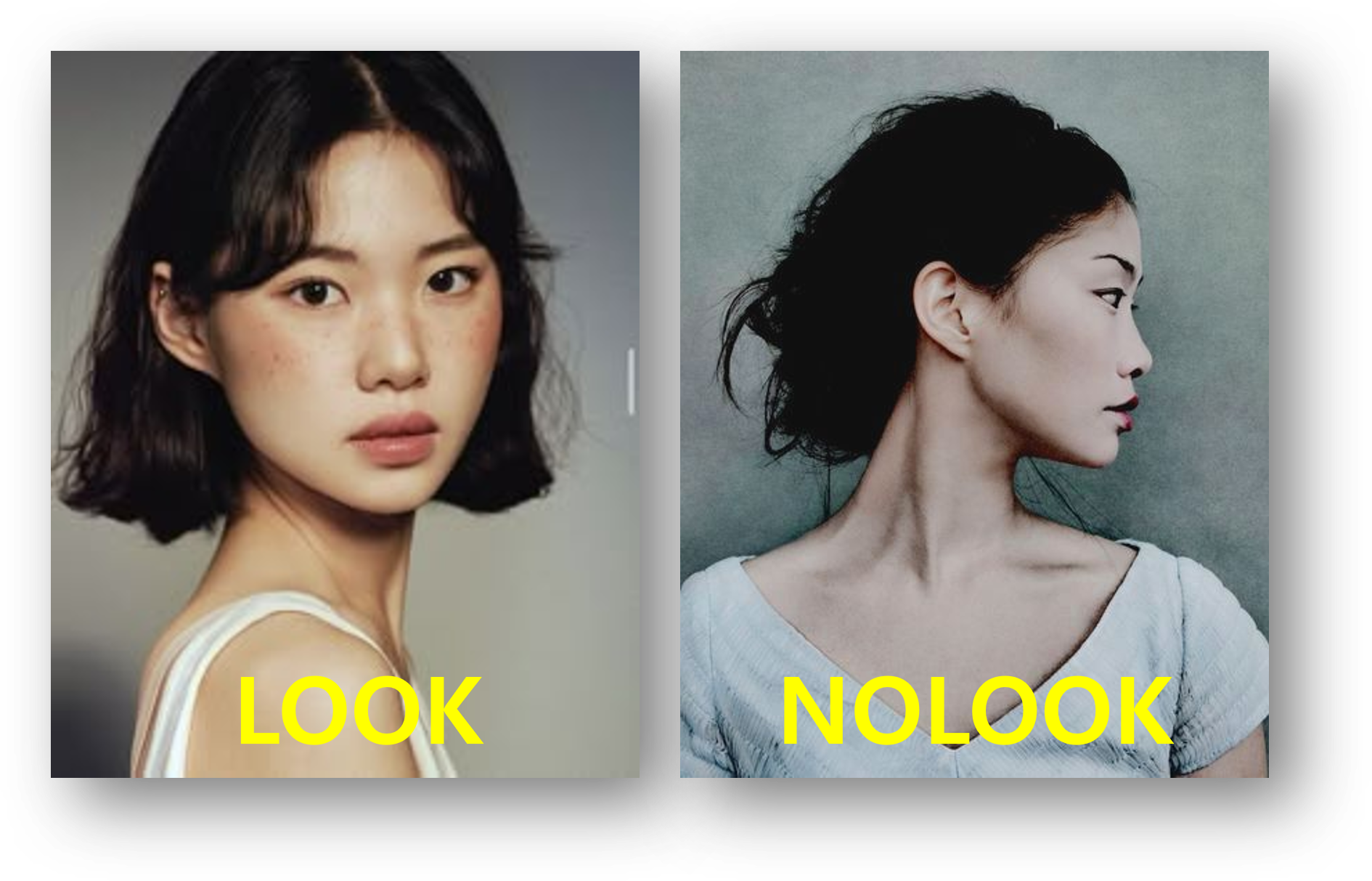

  2. An AI algorithm recognizes passersby, distinguishing between those looking at the facility and those not, and tracks their movement paths.
  3. When a person is detected looking at the facility of interest, the AI algorithm zooms in on their face and identifies their gender and age. This process can be modified to recognize facial expressions (e.g., happy, neutral), and the presence or absence of glasses, hats, or masks.
  4. For each customer of interest, the total time spent looking at the facility of interest is accumulated.
  5. The recognition results are transmitted in real time to a nearby signage system or a central server.

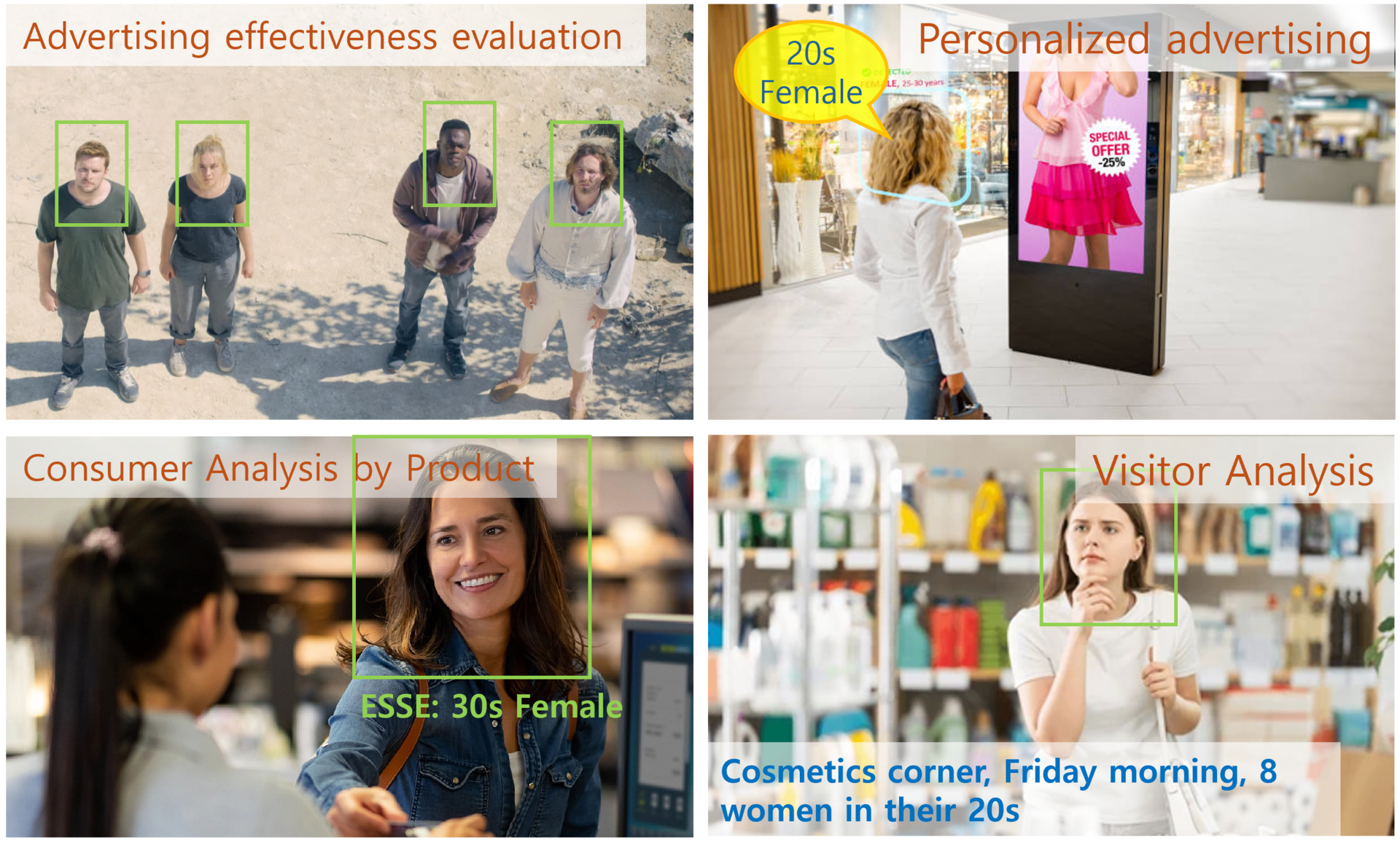

🔹Applications
  • Outdoor/Indoor Billboards : Measuring Advertising Effectiveness


  • Measuring Advertising Effectiveness by Ad Content : Analyzing the Effectiveness of Broadcast Content


  • Personalized Advertising : Targeted Advertising Based on On-Site Customers


  • Checkout Analytics : Mapping the Gender and Age of Customers by Product


  • Product Shelf : Analyzing Interested Customers by Time of Day
🔹How it works

< DeepRunner AI CCTV Ad. Meter >



Installation
  • When using cameras from an existing security system in parallel, connect the device's NVRETH Ethernet port to one of the spare camera ports on the CCTV system.
  • The ETH Ethernet port is connected to the included AI router.
  • Find the Wi-Fi name ai_settop using the AI management PC or smartphone and connect.


Setup

  • Connect to the AI set-top control panel via an internet browser on your laptop.

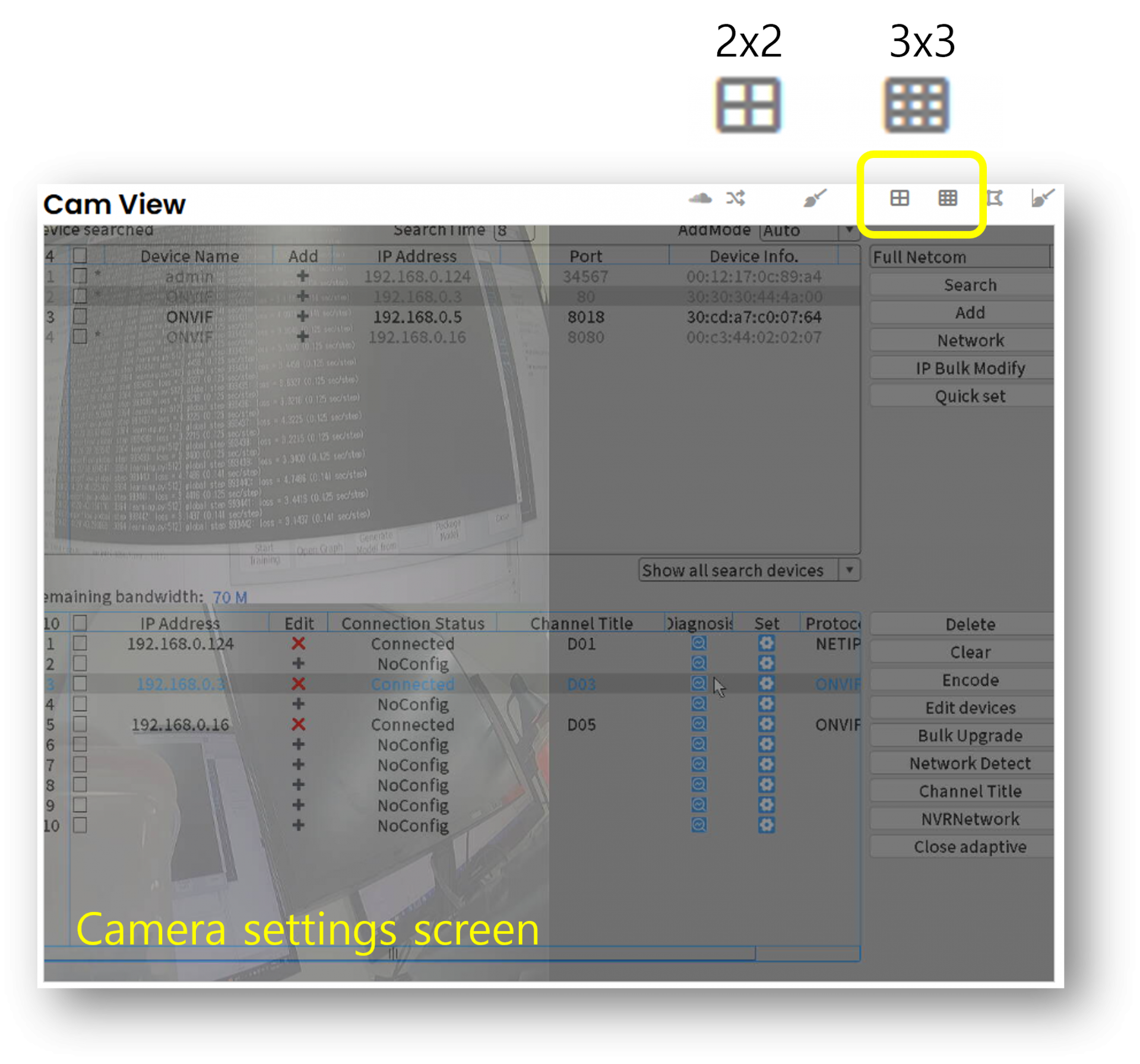

  • Use the mouse connected to the USB port on the back of the AI Agent to configure the camera. You can also connect cameras used for security purposes.
  • Right-click -> Channel Setup -> Search
  • Select Camera
  • Right-click -> OK
  • If you have one or more but four or fewer connected cameras, click the 2x2 icon. If you have five or more connected cameras, click the 3x3 icon.



< DeepRunner AI Edge Ad. Meter  >



Installation
  • Connect the camera to the board's Ethernet port using a LAN cable.
  • Power on the board.
  • Find the Wi-Fi name "ai_settop" on your AI management PC or smartphone and connect.


Setup

  • Connect to the ai_settop Wi-Fi network using your laptop.
  • Connect to the AI settop control panel via an internet browser.
  • Click the camera icon in the upper right corner to find and configure the connected camera.
  • In the settings screen, set the IP address of the system you want to connect to.

Camera Installation


The camera should be installed in the same location or surrounding the facility of interest.

For advertising displays, suitable locations include the top of a monitor, the wall or ceiling behind the checkout counter, or on a product shelf for a merchandise display.

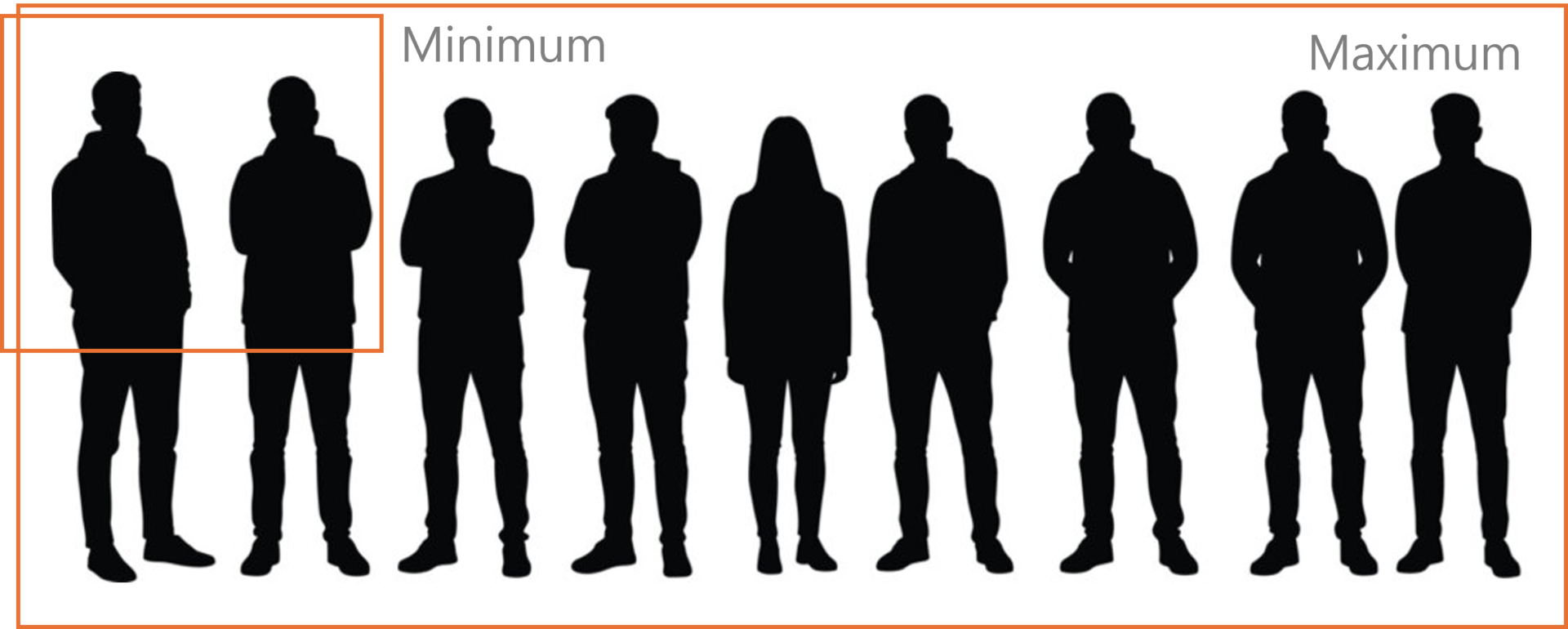

The camera view should be similar to the area shown in the following figure.

🔹Product Specifications

< DeepRunner AI CCTV Ad. Meter  >


Input

Up to 9 network cameras

Output

Local database storage, GPIO pinout, server transmission, etc.

Key Features

Customer Interest Analyzer

User Interface

Web-based control panel

Weight

680 grams

Dimensions

43x134x62 (mm)

Permissible temperature

-10°C - 50°C

Power Supply

12V DC 1A

< DeepRunner AI Edge Ad. Meter  >


Input

Network(IP) cameras

Output

Local database storage, GPIO pinout, server transmission, etc.

Key Features

Customer Interest Analyzer

User Interface

Web-based control panel

Weight

200 grams

Dimensions

54x86x30 (mm)

Permissible temperature

-10°C - 60°C

Power Supply

12V DC 1A
