Deep Runner AI Density Analyzer

Counts large numbers of objects.

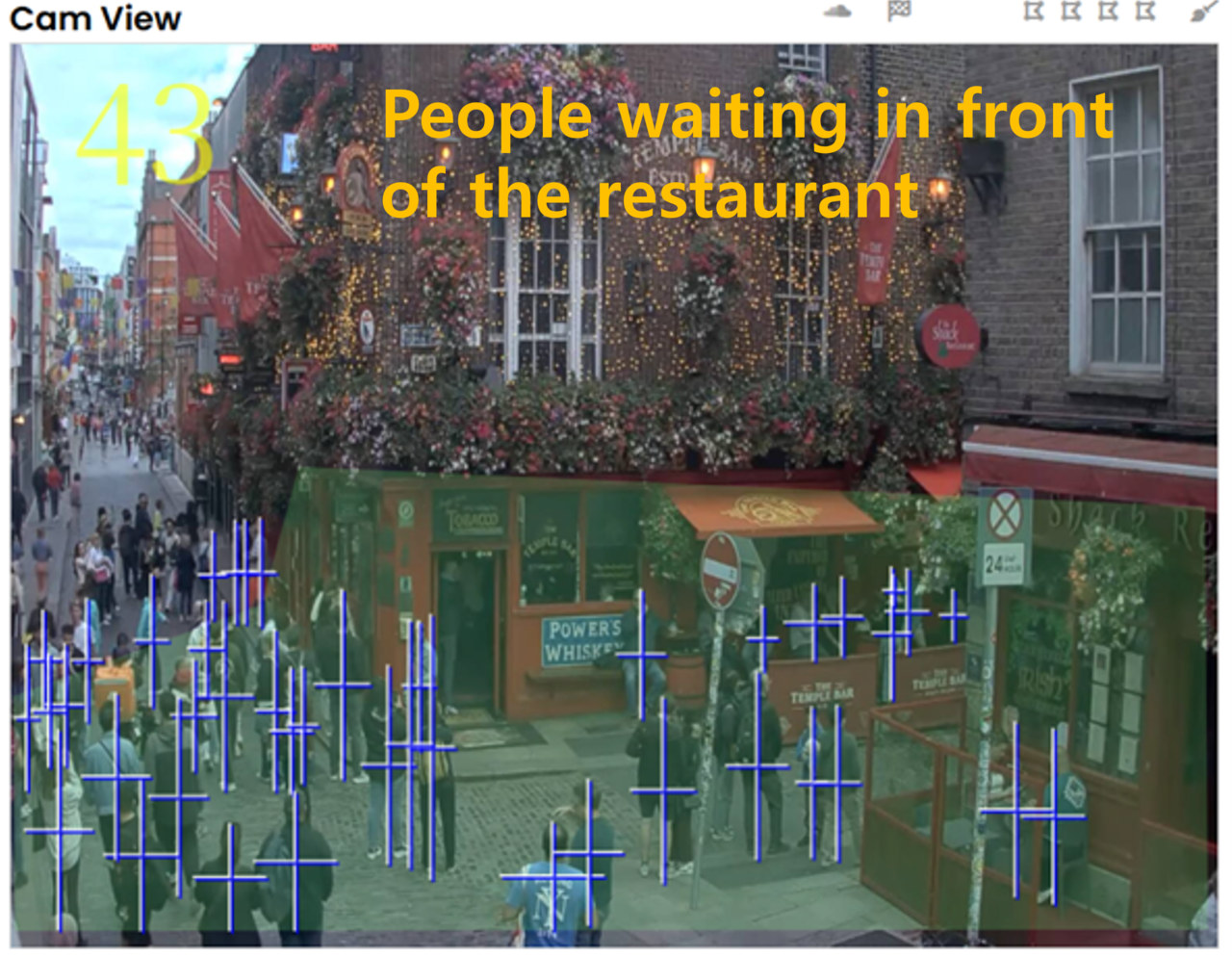

Counts a large number of people, cars, etc. per area in a densely populated area.
🔹Features


  1. Even the smallest objects (people, cars, etc.) can be recognized and counted as long as they are visible to the human eye.

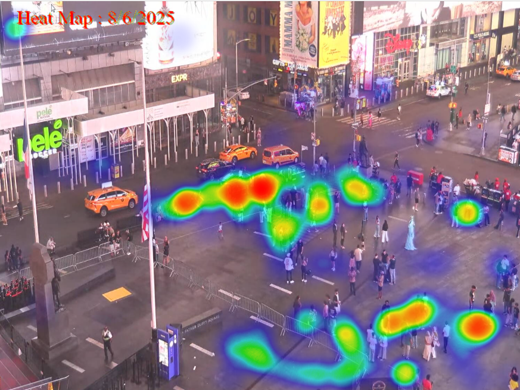

  2. A heatmap displays the locations of frequent object locations.
  3. While each recognition takes a few seconds, repeated counts throughout the day allow for accurate measurement of changes over time.
🔹How it works


  1. For camera input frames, each screen is divided into many smaller screens.
  2. These enlarged images are then recognized by AI.
  3. The recognition results are added to the smaller images and integrated into the original screen.
🔹Applications

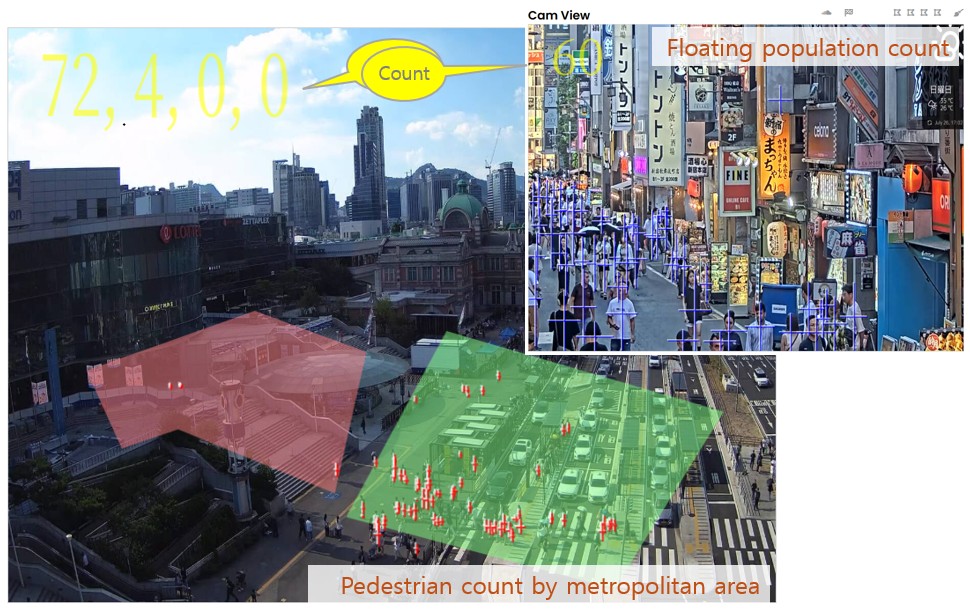

  • Investigate the number of people moving around in densely populated areas by time zone.


  • A single camera can monitor a wide area for breaches of a specific security zone.
🔹How to Use


Connection

  • Connect to the CCTV camera via wireless Wi-Fi or a wired LAN cable.
  • Connect to the management PC via wireless Wi-Fi (if necessary).


Settings

  1. In the Settings window, enter the minimum window size, step change width, and maximum object size.

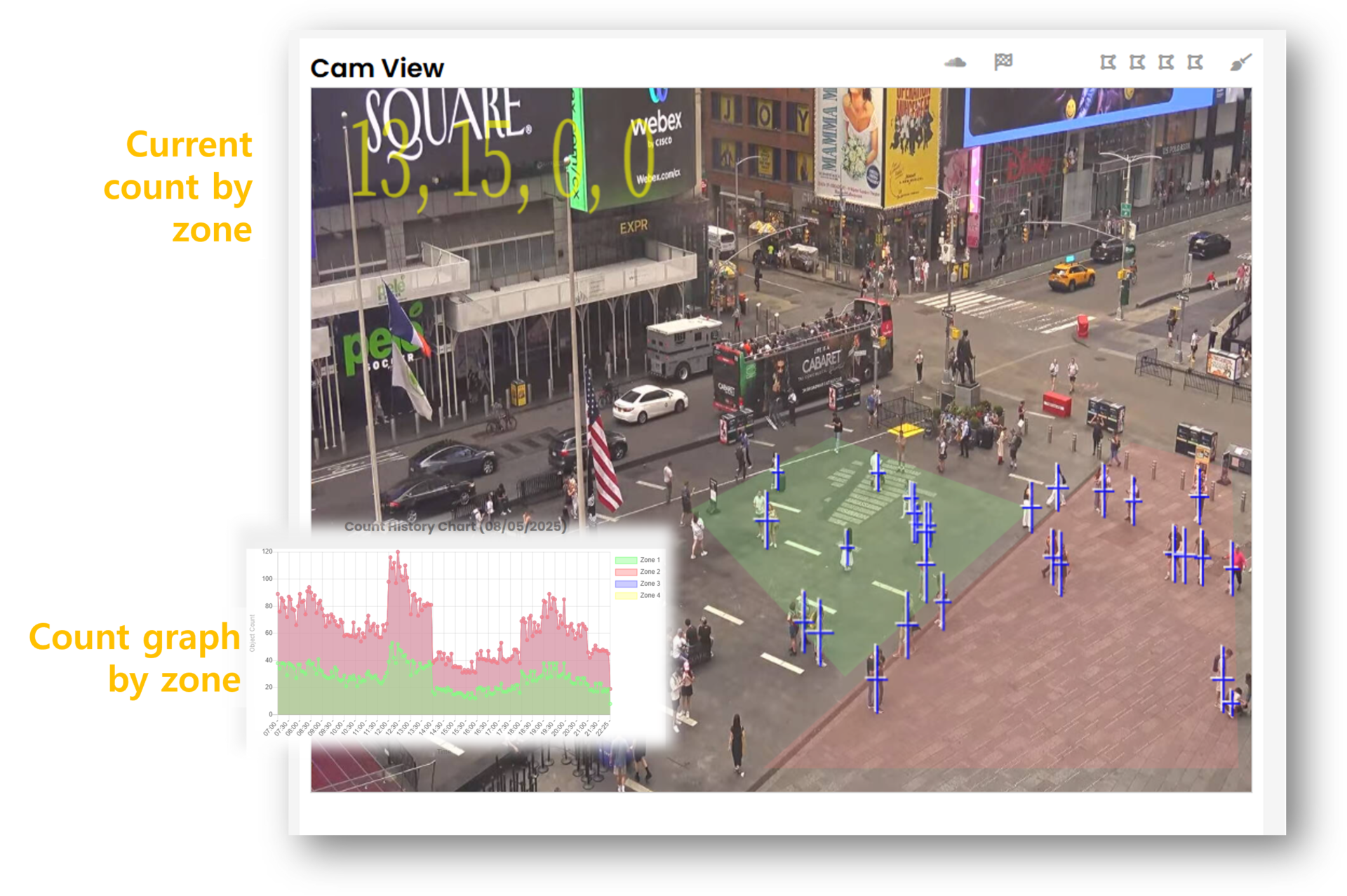

  2. Click the Zone Settings icon to set the zone. If no zone is set, counting will be performed on the entire screen.
  3. Entering the server address in the Settings window will periodically send the average count values for each zone to the server.
🔹Product Specifications

Input

Network (IP) Camera

Output

Local database storage, GPIO pinout, server transmission, etc.

Key Features

Density Analyzer

User Interface

Web-based control panel

Weight

200 grams

Dimensions

54x86x30 (mm)

Permissible temperature

-10°C - 60°C

Power Supply

12V DC 1A
